REST API

We originally developed our existing API to be used between the Web UI xo-web and the server backend, xo-server. That's why it's a JSON-RPC API connected via websockets, allowing us to update objects live in the browser. This is perfect for our usage, but a bit complicated for others.

Also, this API wasn't meant to be public, but over the years some users have expressed a desire to be able to use it for their own purposes. This led us to add more tooling around it, like xo-cli and to answer specific requests.

For these reasons we decided to build a new API. Not an evolution of the current one, but 100% new. It is meant to be public and REST-like. So a simple curl command can request it.

While it's not yet at feature parity with the JSON-RPC API, you can explore all available endpoints through the autogenerated Swagger documentation included in your Xen Orchestra instance. Our goal is to make the REST API the main interface in the future, so it's the most future-proof choice going forward.

Versioning

Our REST API is versioned, and the current version is /v0 (see URL format below). Since this is the first version, we’ve made efforts to avoid breaking changes, but they may still happen. If a major change is required, we’ll release a new version (e.g., /v1) while keeping /v0 available to minimize the impact.

Authentication

A valid authentication token should be attached as a cookie to all HTTP requests:

GET /rest/v0 HTTP/1.1
Cookie: authenticationToken=TN2YBOMYtXB_hHtf4wTzm9p5tTuqq2i15yeuhcz2xXM

The server will respond to an invalid token with a 401 Unauthorized status.

[Not implemented at this time] The server can request that the client updates its token with a Set-Cookie header:

HTTP/1.1 200 OK
Set-Cookie: authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs

Usage with cURL:

curl -b \
    authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
    https://xo.company.lan/rest/v0/

You can use xo-cli to create an authentication token:

$ xo-cli create-token xoa.company.lan admin@admin.net
Password: ********
Successfully logged with admin@admin.net
Authentication token created

DiYBFavJwf9GODZqQJs23eAx9eh3KlsRhBi8RcoX0KM

tip

Only admin users can currently use the API.

Collections request

Collections of objects are available at /<name> (e.g. /vms)

The following query parameters are supported:

limit: max number of objects returned
fields: if specified, instead of plain URLs, the results will be objects containing the requested fields
filter: a string that will be used to select only matching objects, see the syntax documentation
ndjson: if specified, the result will be in NDJSON format

Simple request:

GET /rest/v0/vms HTTP/1.1
Cookie: authenticationToken=TN2YBOMYtXB_hHtf4wTzm9p5tTuqq2i15yeuhcz2xXM

HTTP/1.1 200 OK
Content-Type: application/json

[
  "/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac",
  "/rest/v0/vms/5019156b-f40d-bc57-835b-4a259b177be1"
]

With custom fields:

GET /rest/v0/vms?fields=name_label,power_state HTTP/1.1
Cookie: authenticationToken=TN2YBOMYtXB_hHtf4wTzm9p5tTuqq2i15yeuhcz2xXM

HTTP/1.1 200 OK
Content-Type: application/json

[
  {
    "name_label": "Debian 10 Cloudinit",
    "power_state": "Running",
    "url": "/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac"
  },
  {
    "name_label": "Debian 10 Cloudinit self-service",
    "power_state": "Halted",
    "url": "/rest/v0/vms/5019156b-f40d-bc57-835b-4a259b177be1"
  }
]

Here is an example with `curl`:

```console
$ curl \
  -b authenticationToken=0OQIKwb1WjeHtch25Ls \
  http://xoa.example.com/rest/v0/vms?fields=name_label,power_state
[
  {
    "name_label": "FreeNAS",
    "power_state": "Running",
    "href": "/rest/v0/vms/0fc14abc-ae7a-4209-79c4-d20ca1f0e567"
  },
  {
    "name_label": "Ubuntu 20.04 test",
    "power_state": "Halted",
    "href": "/rest/v0/vms/d505eb99-164e-5516-27e1-43837a01be45"
  },
  {
    "name_label": "Rocky Linux 8",
    "power_state": "Halted",
    "href": "/rest/v0/vms/38f423b7-1498-ee8c-ca8d-d3bb8fcffcf2"
  },
  {
    "name_label": "XOA 🎷",
    "power_state": "Running",
    "href": "/rest/v0/vms/857e34e5-c61a-f3f1-65e6-a7a9306b347b"
  }
]

As NDJSON:

GET /rest/v0/vms?fields=name_label,power_state&ndjson HTTP/1.1
Cookie: authenticationToken=TN2YBOMYtXB_hHtf4wTzm9p5tTuqq2i15yeuhcz2xXM

HTTP/1.1 200 OK
Content-Type: application/x-ndjson

{"name_label":"Debian 10 Cloudinit","power_state":"Running","url":"/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac"}
{"name_label":"Debian 10 Cloudinit self-service","power_state":"Halted","url":"/rest/v0/vms/5019156b-f40d-bc57-835b-4a259b177be1"}

Task monitoring

Specific task

When fetching a task record, the special wait query string can be used. If its value is result it will wait for the task to be resolved (either success or failure) before returning; otherwise, it will wait for the next change of state.

curl \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  'https://xo.example.org/rest/v0/tasks/0lr4zljbe?wait=result'

All tasks

A watch mode is available when fetching the collection as NDJSON by using both ndjson and watch query strings. Instead of sending the objects directly, each entry will be an array [event, object]. event can be either remove to mean that an object has been removed from the collection or update to mean that an object has been added to the collection or updated.

In case of the remove event, only the id properties of the deleted object is available.

The fields and filter parameters are supported.

Example:

GET /rest/v0/vms?fields=start,status&ndjson&watch HTTP/1.1
Cookie: authenticationToken=TN2YBOMYtXB_hHtf4wTzm9p5tTuqq2i15yeuhcz2xXM

HTTP/1.1 200 OK
Content-Type: application/x-ndjson

["remove",{"href":"/rest/v0/tasks/0lv13orww"}]
["update",{"start":1713194362080,"status":"pending","href":"/rest/v0/tasks/0lv13otzz"}]

This request does not send existing tasks, only events. If you want to get the whole collection and keep it up-to-date, the correct way to do that is:

start a watch request

fetch the whole collection via a normal request

process events sent by the watch request to update the local cache

Properties update

This feature is restricted to name_label, name_description and tags at the moment.

curl \
  -X PATCH \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -d '{ "name_label": "The new name", "name_description": "The new description" }' \
  'https://xo.example.org/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac'

Collections

For collection properties, like tags, it can be more practical to touch a single item without impacting the others.

An item can be created with PUT <collection>/<item id> and can be destroyed with DELETE <collection>/<item id>.

Adding a tag:

curl \
-X PUT \
-b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
'https://xo.example.org/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac/tags/My%20tag'

Removing a tag:

curl \
  -X DELETE \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  'https://xo.example.org/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac/tags/My%20tag'

VM and VDI destruction

For a VM:

curl \
  -X DELETE \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  'https://xo.example.org/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac'

For a VDI:

curl \
  -X DELETE \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  'https://xo.example.org/rest/v0/vdis/1a269782-ea93-4c4c-897a-475365f7b674'

VM and VDI export

VDI export and VM export are supported by the API. Below is a simple example to export a VM with zstd compression into a myVM.xva file:

curl \
  -b authenticationToken=KQxQdm2vMiv7jFEAZXOAGKFkTbs \
  'https://xoa.example.org/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237a12.xva?compress=zstd' \
  > myVM.xva

A VDI can be exported in VHD format at /rest/v0/vdis/<uuid>.vhd or the raw content at /rest/v0/vdis/<uuid>.raw.

curl \
  -b authenticationToken=KQxQdm2vMiv7FkTbs \
  'https://xoa.example.org/rest/v0/vdis/1a269782-ea93-4c4c-897a-475365f7b674.vhd' \
  > myDisk.vhd

The following optional query parameters are supported for VDI export:

preferNbd: will use NBD for export if available
nbdConcurrency=<integer>: set the number of concurrent stream per disk if NBD is enabled, default 1

VM Import

OVA import is not supported.

A VM can be imported by posting an XVA to /rest/v0/pools/:id/vms.

curl \
  -X POST \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  -T myDisk.raw \
  'https://xo.example.org/rest/v0/pools/355ee47d-ff4c-4924-3db2-fd86ae629676/vms?sr=357bd56c-71f9-4b2a-83b8-3451dec04b8f' \
  | cat

The sr query parameter can be used to specify on which SR the VM should be imported, if not specified, the default SR will be used.

Note: the final | cat ensures cURL's standard output is not a TTY, which is necessary for upload stats to be displayed.

VDI Import

Existing VDI

A VHD or a raw export can be imported in an existing VDI respectively at /rest/v0/vdis/<uuid>.vhd and /rest/v0/vdis/<uuid>.raw.

Note: the size of the VDI must match exactly the size of VDI that was previously exported.

curl \
  -X PUT \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  -T myDisk.vhd \
  'https://xo.example.org/rest/v0/vdis/1a269782-ea93-4c4c-897a-475365f7b674.vhd' \
  | cat

Note: the final | cat ensures cURL's standard output is not a TTY, which is necessary for upload stats to be displayed.

New VDI

An export can also be imported on an SR to create a new VDI at /rest/v0/srs/<sr uuid>/vdis.

curl \
  -X POST \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  -T myDisk.raw \
  'https://xo.example.org/rest/v0/srs/357bd56c-71f9-4b2a-83b8-3451dec04b8f/vdis?raw&name_label=my_imported_VDI' \
  | cat

Note: the final | cat ensures cURL's standard output is not a TTY, which is necessary for upload stats to be displayed.

This request returns the UUID of the created VDI.

The following query parameters are supported to customize the created VDI:

name_label
name_description
raw: this parameter must be used if importing a raw export instead of a VHD

Actions

Available actions

To see the actions available on objects of a specific collection, get the collection at /rest/v0/<type>/_/actions.

For example, to list all actions on a VM:

$ curl \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  'https://xo.company.lan/rest/v0/vms/_/actions'
[
"/rest/v0/vms/_/actions/clean_reboot",
"/rest/v0/vms/_/actions/clean_shutdown",
"/rest/v0/vms/_/actions/hard_reboot",
"/rest/v0/vms/_/actions/hard_shutdown",
"/rest/v0/vms/_/actions/snapshot",
"/rest/v0/vms/_/actions/start"
]

To see more information about a specific action, you can checkout its endpoint:

$ curl \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  'https://xo.company.lan/rest/v0/vms/_/actions/snapshot'
{
  "params": {
    "name_label": {
      "type": "string",
      "optional": true
    }
  }
}

The field params contains the JSON schema for the parameters.

Start an action

Post at the action endpoint which is /rest/v0/<type>/<uuid>/actions/<action>.

For instance, to reboot a VM:

curl \
  -X POST \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  'https://xo.example.org/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac/actions/clean_reboot'

Some actions accept parameters, they should be provided in a JSON-encoded object as the request body:

curl \
  -X POST \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -d '{ "name_label": "My snapshot" }' \
  'https://xo.example.org/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac/actions/snapshot'

By default, actions are asynchronous and return the reference of the task associated with the request (see Task monitoring).

The ?sync flag can be used to run the action synchronously without requiring task monitoring. The result of the action will be returned encoded as JSON:

$ curl \
  -X POST \
  -b authenticationToken=KQxQdm2vMiv7jBIK0hgkmgxKzemd8wSJ7ugFGKFkTbs \
  'https://xo.example.org/rest/v0/vms/770aa52a-fd42-8faf-f167-8c5c4a237cac/actions/clean_reboot'
"2b0266aa-c753-6fbc-e4dd-c79be7782052"

OpenAPI/Swagger

What is Swagger?

Swagger allows you to describe the structure of an API so that machines can understand. By parsing the structure of the API, Swagger can automatically generate clear, user-friendly, and interactive API documentation. It also makes integration with tools and automatic client library generation possible.

As part of our continuous efforts to improve the developer experience, we’ve begun documenting the Xen Orchestra REST API using the OpenAPI (Swagger) standard:

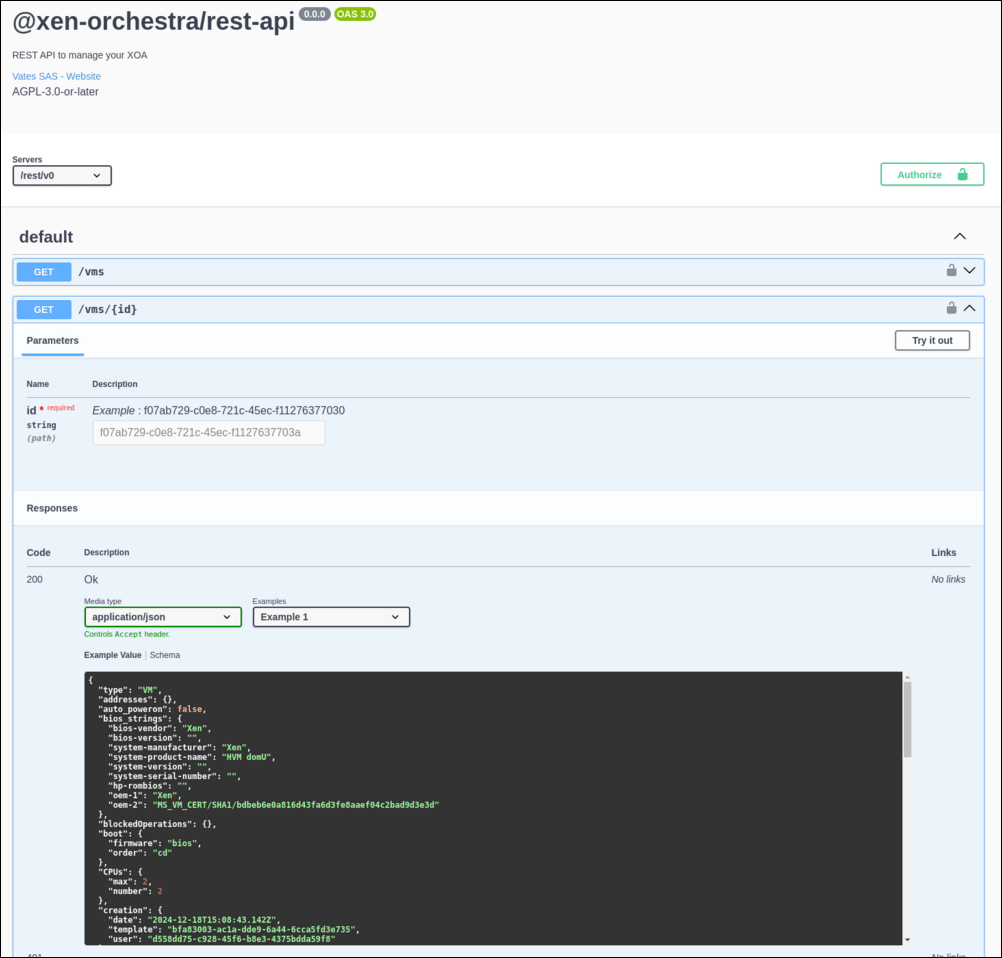

VM getID enpoints documented in Swagger

tip

The Swagger API documentation is still a work in progress. Not all endpoints are currently covered, and some details may change as we continue to refine the specification. However, it already provides a solid foundation for understanding and interacting with key parts of the API.

Accessing the Xen Orchestra API documentation in Swagger

Both versions of the API are now available at /rest/v0. However, only the endpoints that have been migrated to the new Swagger setup will show up in the documentation at /rest/v0/docs.

The Swagger UI doesn't just provide documentation of available endpoints. It also lets you test them directly from the interface, making it easier to experiment with the API without writing any code.

As we continue the migration process, the documentation will expand and improve. Our goal is that once everything is fully transitioned, /rest/v0 will automatically redirect to the docs.

Ongoing Improvements

We are actively working on enhancing and expanding the REST API with new features and capabilities. If you have specific use cases, ideas, or feedback that you would like to share, feel free to participate in the discussion on our Xen Orchestra forum.
